Technical Specifications
| Specification | Details |
|---|---|
| Product Title | IE324DNU- Inverter Split AC 2.0 Tr 3 Star |
| Nominal Cooling Capacity (Tonnage) | 2 |
| Star Rating | 3 star |
| Cooling Capacity (Watt)(Min~Max) | 6350 (1772~6624) |
| (Rated) Voltage/ Frequency/ Phase | 230V/50Hz/1Ph |
| ISEER | 3.90 |
| Address of Manufacturer | BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
| Country of Origin | India |
| Air Conditioner Technology | Inverter |
| Cooling Capacity (BTU/hr) | 21666 |
| Rated Cooling Capacity (50% Load) (Watt) | 3175 |
| Cooling Rated Power Input (Watt) | 2025 |
| Cooling Capacity (BTU/hr) (Min~Max) | 21666 |
| Cooling Power Input (50% Load) (Watt) | 770 |
| Nominal Current (Cooling) (Amps) | 9.17 |
| Moisture Removal (Litres/Hour) | 1.8 |
| Compressor Type | Inverter Rotary |
| Acoustic Jacket on Compressor | yes |
| Refrigerant Quantity (kg) | 0.9 |
| Ambient Temp (Cooling) (degree C) | 52 |

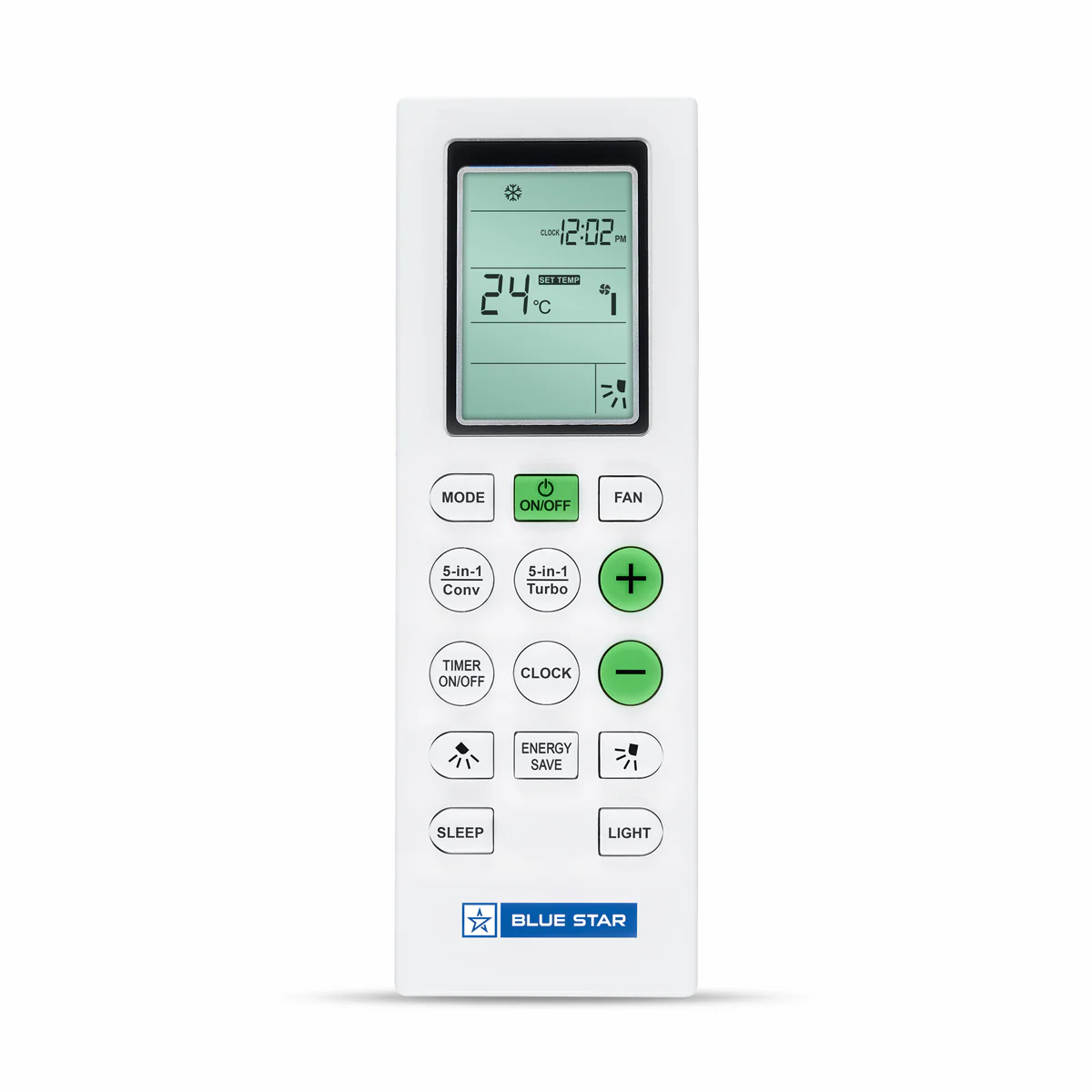

| Remote | 5 in 1 LCD Remote |
| Night Glow Function on Remote Buttons | yes |
| Net IDU Dimension (mm) | 1110 x 215 x 335 |
| Input Power Supply | Indoor Unit |
| Net Weight IDU (kg) | 12.8 |
| Net ODU Dimensions (Width x Depth x Height) (mm) | 889 x 367 x 582 |
| Net Weight ODU (kg) | 28.4 |
| Noise Level Outdoor (dB) | 60 |
| Gross IDU Weight (kg) | 15.8 |
| Gross ODU Weight (kg) | 37 |
| Suction Tube Size Outer Diameter Inch (mm) | 5/8″ (15.87 mm) |
| Liquid Tube Size Outer Diameter Inch (mm) | 1/4″ (6.35mm) |
| Power Supply to ODU Source (Core/Gauge) | 4C * 2.5 sqmm |
| Power Supply to IDU Source (Core/Gauge) | 3C * 2.5 sqmm |
| Remote Battery Type | AAA |
| Features Refrigerant | R32 |
| Features Condenser Type | 100% Copper |
Values are based on standard testing conditions.
