Description
Technical Specifications
| Specification | Details |
|---|---|
| Product Title | IC524TKUR- Inverter Split AC 2.0 Tr 5 Star |
| Nominal Cooling Capacity (Tonnage) | 2 |
| Star Rating | 5 star |
| Cooling Capacity (Watt)(Min~Max) | 6100 (2771~6710) |
| (Rated) Voltage/ Frequency/ Phase | 230V/50Hz/1Ph |
| ISEER | 5.05 |
| Address of Manufacturer | BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
| Country of Origin | India |
| Air Conditioner Technology | Inverter |
| Cooling Capacity (BTU/hr) | 20814 |
| Rated Cooling Capacity (50% Load) (Watt) | 3050 |
| Cooling Rated Power Input (Watt) | 1570 |
| Cooling Capacity (BTU/hr) (Min~Max) | 20814 |
| Cooling Power Input (50% Load) (Watt) | 550 |
| Electricity Consumed in 1600 Hours (Units/Year) | 935.47 |
| Nominal Current (Cooling) (Amps) | 6.85 |
| Air Flow Volume (Wet CFM) (High/Medium/Low) | 565/500/426/345 |
| Noise Level Indoor (dB) (High/Medium/Low) | 51/47/43/37 |
| Moisture Removal (Litres/Hour) | 1.85 |
| Compressor Type | Inverter Rotary |
| Acoustic Jacket on Compressor | yes |
| Refrigerant Quantity (kg) | 1.29 |
| Ambient Temp (Cooling) (degree C) | 56 |

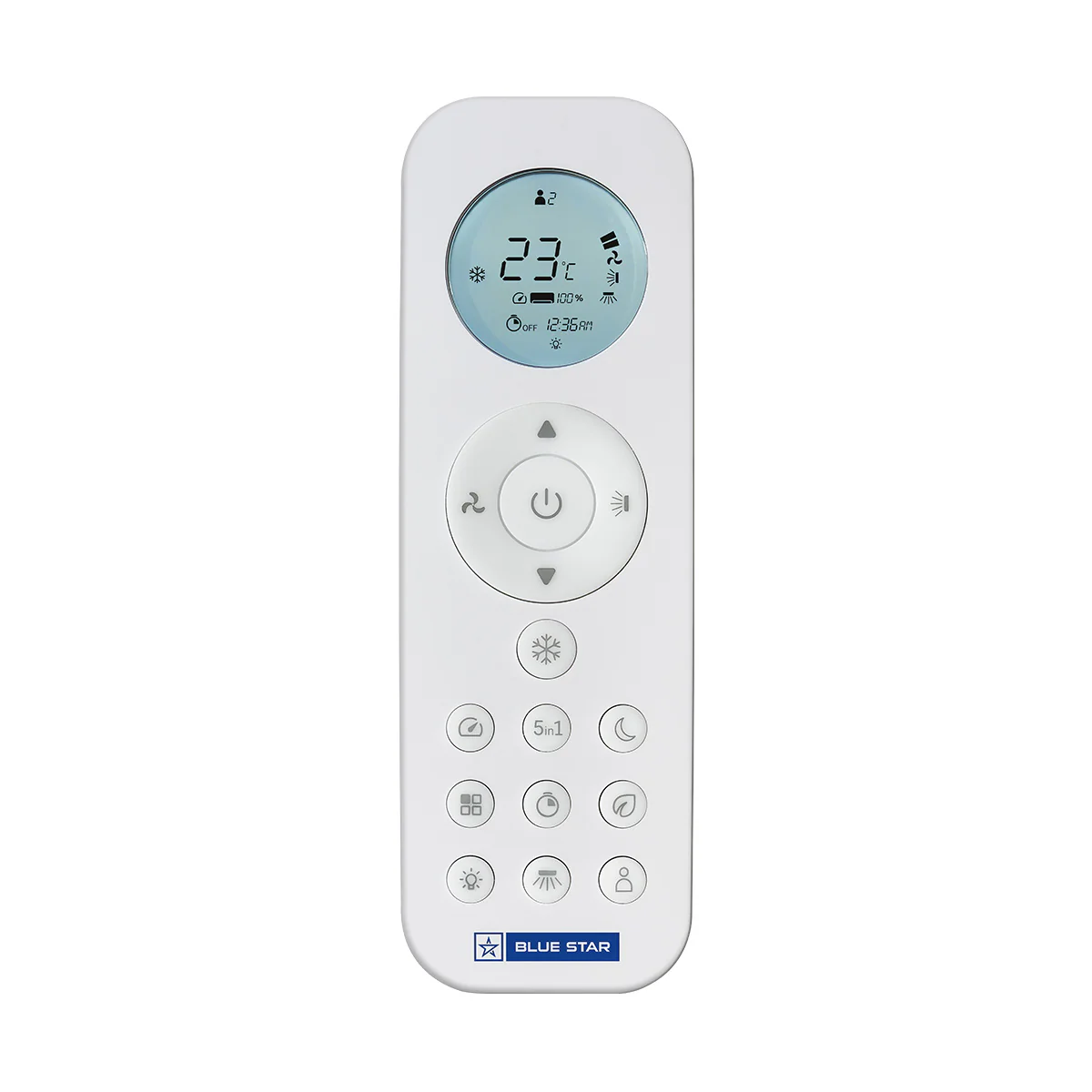

| Remote | 5 in 1 LCD Remote |
| Night Glow Function on Remote Buttons | yes |
| Net IDU Dimension (mm) | 950 x 229 x 320 |
| Input Power Supply | Indoor Unit |
| Net Weight IDU (kg) | 11.5 |
| Net ODU Dimensions (Width x Depth x Height) (mm) | 1015 x 371 x 721 |
| Net Weight ODU (kg) | 37.7 |
| Noise Level Outdoor (dB) | 58 |
| Gross IDU Weight (kg) | 14.3 |
| Gross ODU Weight (kg) | 47.5 |
| Suction Tube Size Outer Diameter Inch (mm) | 5/8″ (15.87 mm) |
| Liquid Tube Size Outer Diameter Inch (mm) | 1/4″ (6.35mm) |
| Refrigerant Additional Charge Beyond 4M (g/m) | 15 |
| Power Supply to ODU Source (Core/Gauge) | 4C * 2.5 sqmm |
| Power Supply to IDU Source (Core/Gauge) | 3C * 2.5 sqmm |
| Remote Battery Type | AAA |
| Features Refrigerant | R32 |
| Features Condenser Type | 100% Copper |
Values are based on standard testing conditions.
